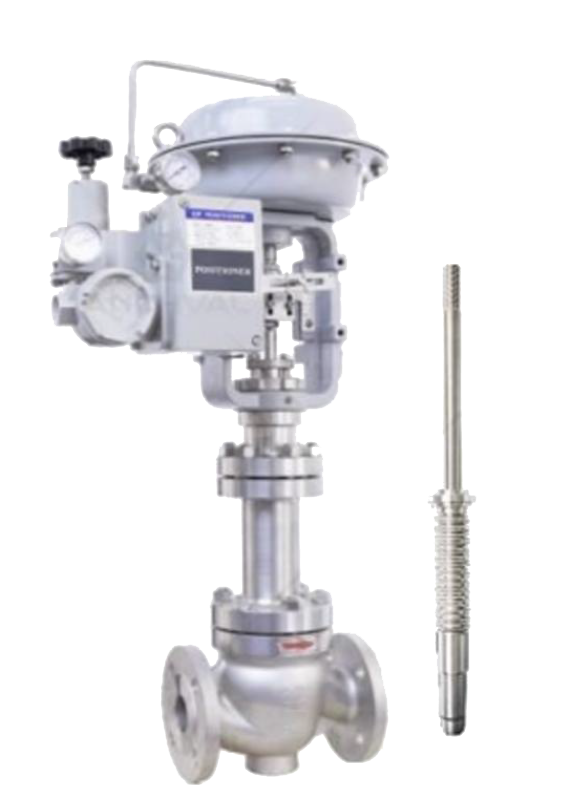

Sleeve guided regulating valve
采用平衡型阀芯设计,式阀腔上方压力与阀前保持一致,提高流体稳定性,启闭力矩小,适合高压差、大流量工况。
Adopting a balanced valve core design, the pressure above the valve chamber is consistent with that in front of the valve, improving fluid stability. The opening and closing torque is small, suitable for high pressure differential and high flow conditions.
1、模块化设计,拆装维修方便
2、泄漏量低,控制精度高
3、动作稳定可靠,流量特性精确
4、适用于高压差、大流量工况
制药、化工、石油、电力、冶金、水处理、气体
公称直径 | DN15-DN400 | 公称压力 | PN16-PN40 | 内件材质 | 304/316/316L/SUS410/SUS630 |
使用温度 | -196℃-538℃ | 密封泄漏 | V/V1 | 阀体材质 | WCB/CF8/CF8M/CF3M/LCB/WC6 |
连接方式 | 焊接型/法兰连接 | 流量特性 | LINEAR/EQ%/ON-OFF | 执行结构 | 气动薄膜式/气动活塞式/电动 |
